- Pup Joint
Pipe Type: Pup Joints, Casing Pup Joints,Tubing Pup Joints, NUE/EUE Tubing Pipe, Perforated Pup Joints
Outside Diameter：2-3/8”（60.3mm） – 4-1/2(114.60mm)
Lengths: 2, 3, 4, 6, 8,10, 12 ft
Casing Couping : 4-1/2” – 20′
Surface: Coating
API 5CT Grades: H40, J55, K55, N80, L80, P110, Q125, C90, T95, Chrome 1%, Chrome 3%, Chrome 13%, Chrome 25%, Chrome 28% and lot more…
Thread: BTC, LTC, STC
Special Service: Sweet Service, Sour Service, Anti-H2S, NACE MR0175/ISO15156
- Introduction
A pup joint is Casing, Pipe or Tubing shorter in length than a standard tubular string. This allows for the adjustment and installation of tools and various tubular components when placement downhole is critical for a specific project. A Spacer Pipe is another reference used to identify pup joints. Pup joint features consist of connections, lengths, weights and material grade.
-
Pipe Type: Pup Joints,Casing Pup Joints,Tubing Pup Joints:NUE/EUE Tubing Pipe,Perforated Pup Joints, tubing Pup Joints
-
Outside Diameter： 2-3/8''（60.3mm） - 4-1/2(114.60mm)
-
Lengths : 2, 3, 4, 6, 8, 10, 12 ft
-
Casing Couping: 4-1/2'' - 20'
-
Surface: Coating
-
API 5CT Grades: H40, J55, K55, N80, L80, P110, Q125, C90, T95, Chrome 1%, Chrome 3%, Chrome 13%, Chrome 25%, Chrome 28% and lot more…
-
Thread: BTC, LTC, STC
-
Special Service : Sweet Service, Sour Service, Anti-H2S, NACE MR0175/ISO15156

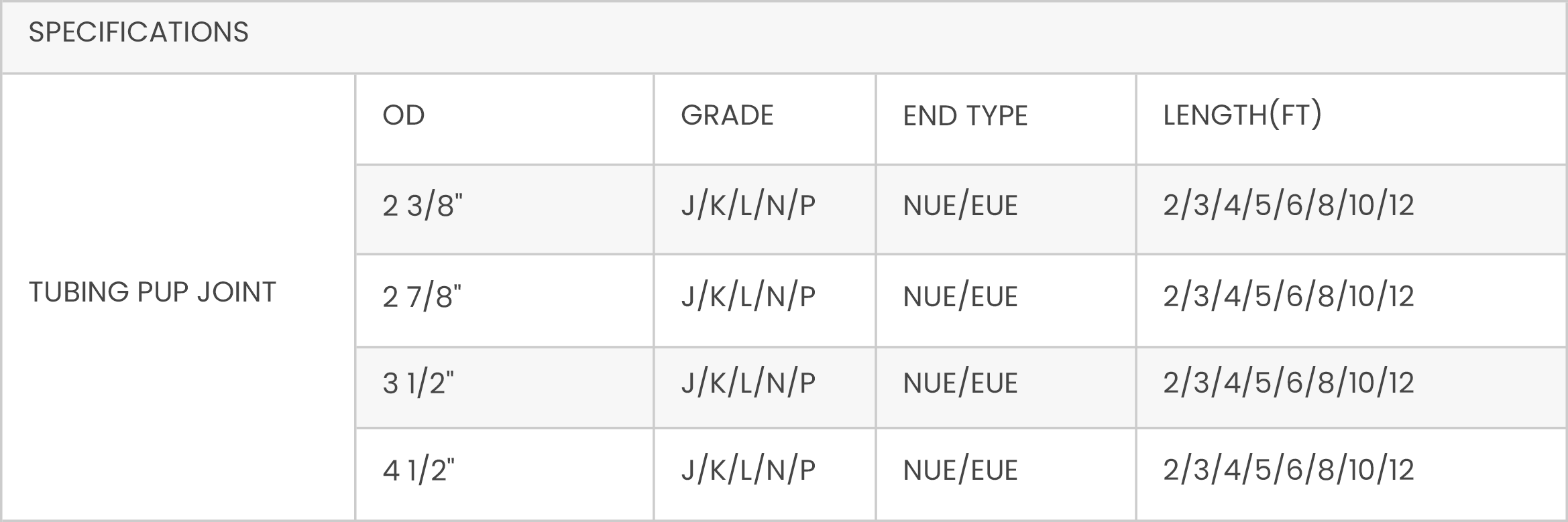

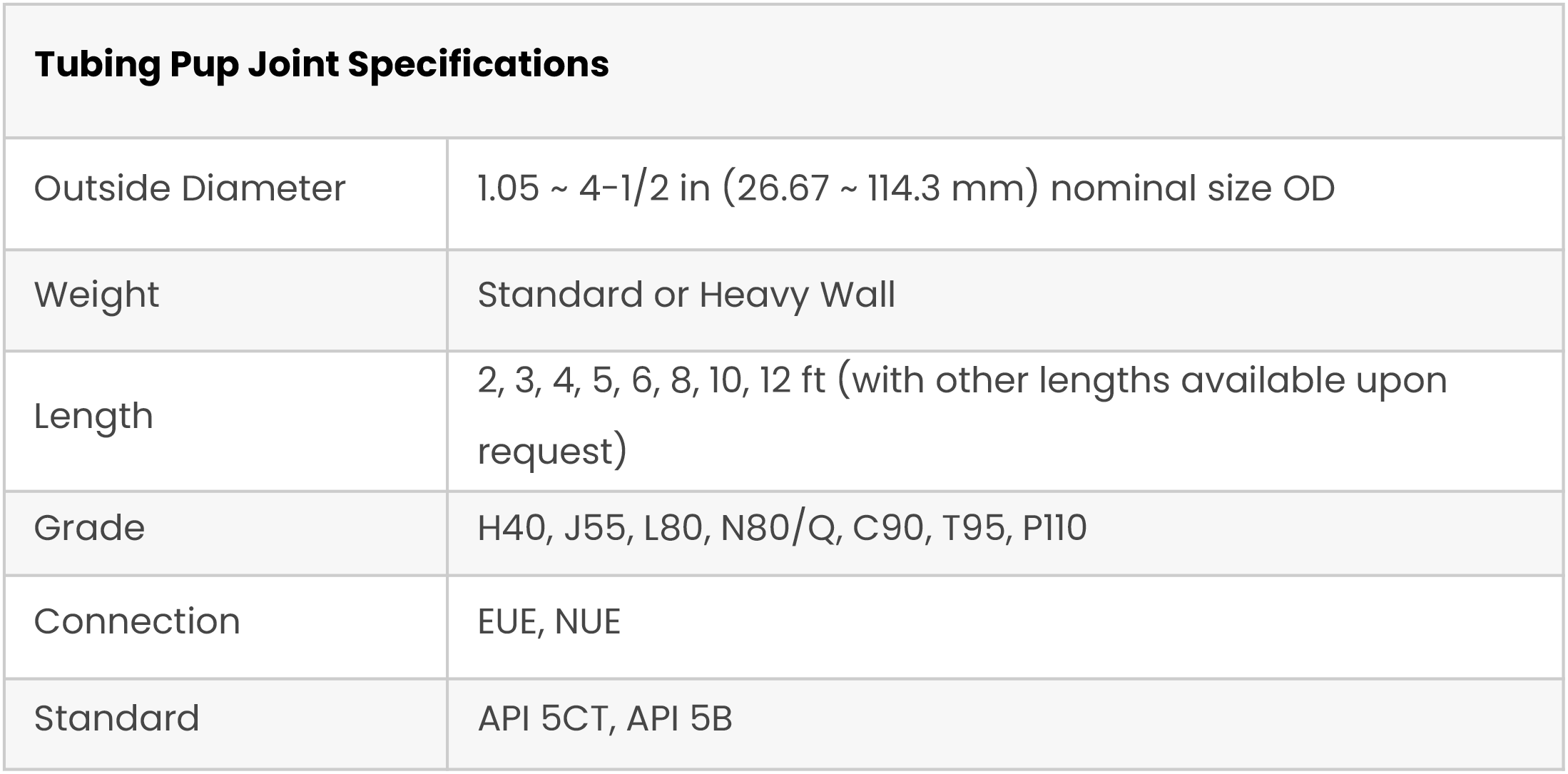

Tubing Pup Joints:
•Sizes: 2 ⅜” – 4 ½”
•Weight: Standard or Requested Weights
•Typical Lengths: 1, 2, 3, 4, 6, 8, 10, 12′ (other lengths available upon request)
•Grades: J-55, N-80, L-80, P-110
•Connections EU (external-upset) and NU (non-upset)
•Options: Custom Sizes, Markings, Paint, Plating, and Inspection available on request

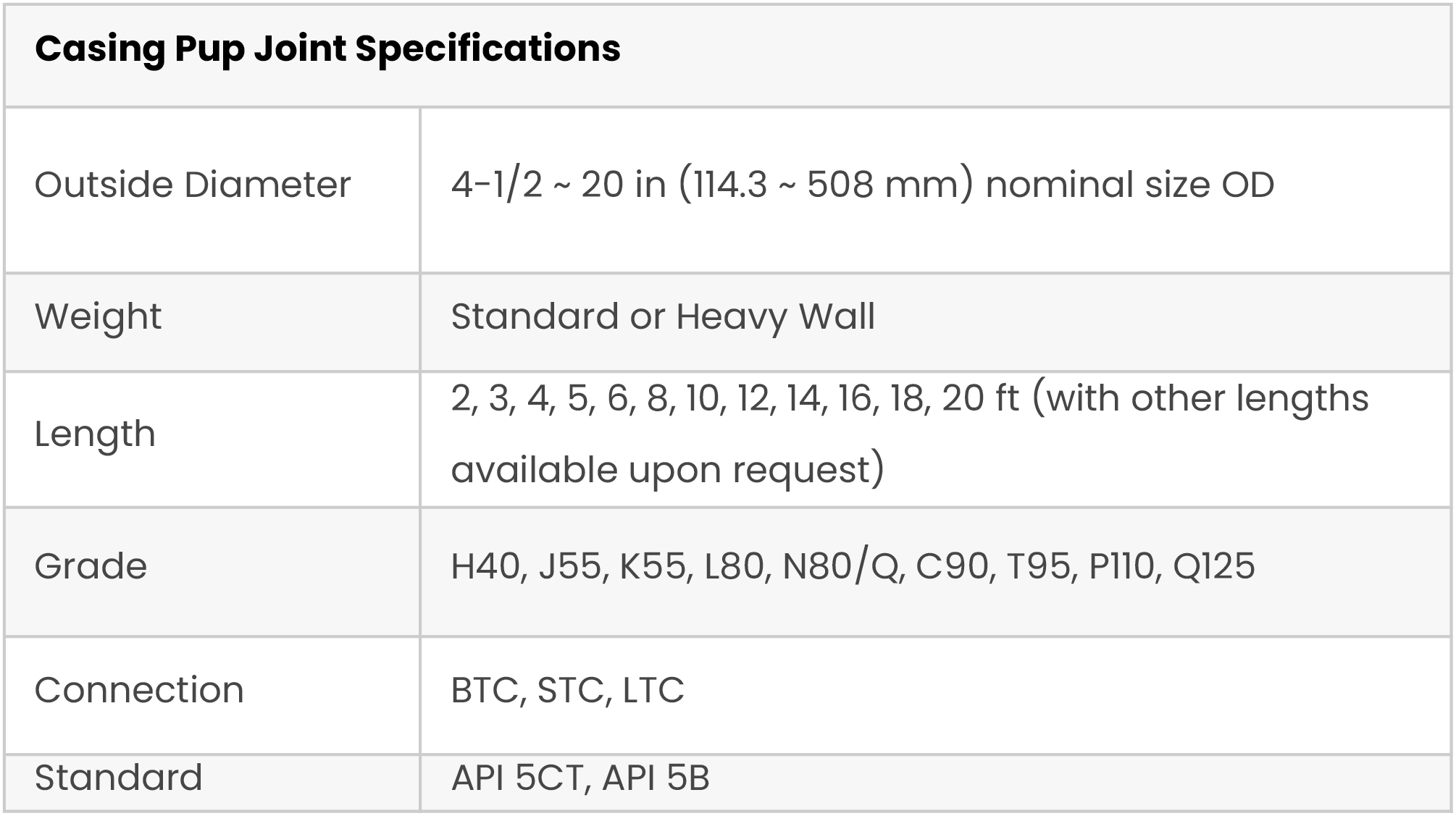

Casing Pup Joints:
•Outside Diameter: 4 ½” – 13 3/8″
•All weights available
•Typical Lengths: 1, 2, 3, 4, 6, 8, 10, 12′ (other lengths available upon request)
•Grades: H40, J55, K55, N80, L80 T95, C110, P110, Q125
•Connections: SC, LC, BC, Semi Premium, and Premium
•Options: Custom Sizes, Markings, Paint, Plating, and Inspection available on request
Pup Joint Options:
•Pin x Pin
•Pin x Pin with Couplings Loose
•Coupling Box x Pin with Couplings Hand Tight
•Coupling Box x Pin with Couplings Bucked-On
Pup Joints are manufactured from AISI 4145H or 4140H-modified alloy, heat-treated to Hardness range of 285-341 with a Charpy “V” notch minimum impact strength of 40 ft/lb at 70° F and one inch below the surface. Pup Joints are heat-treated to 110,000 PSI minimum yield. All connections are phosphate coated to impede galling during initial make-up.

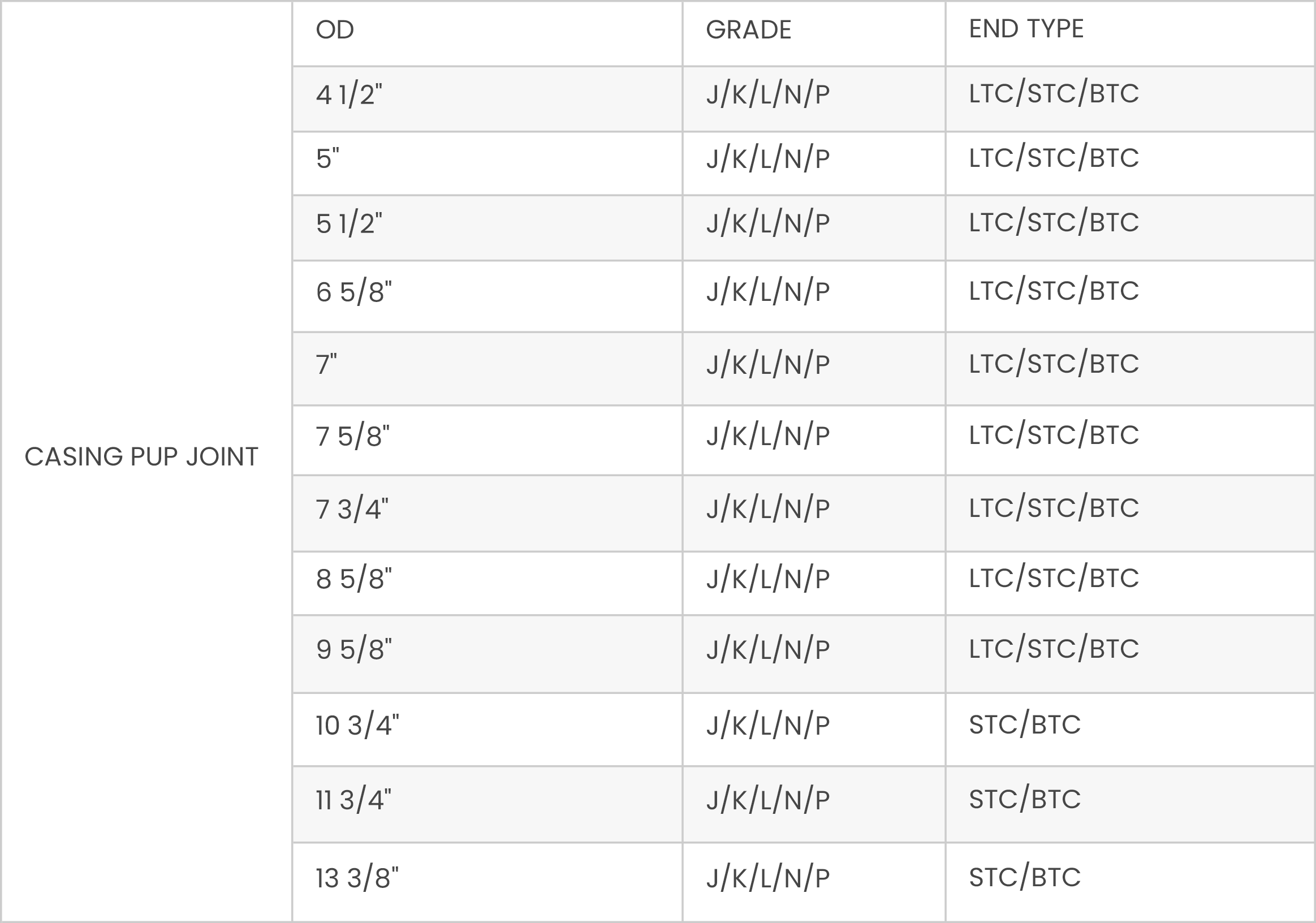

- Specification

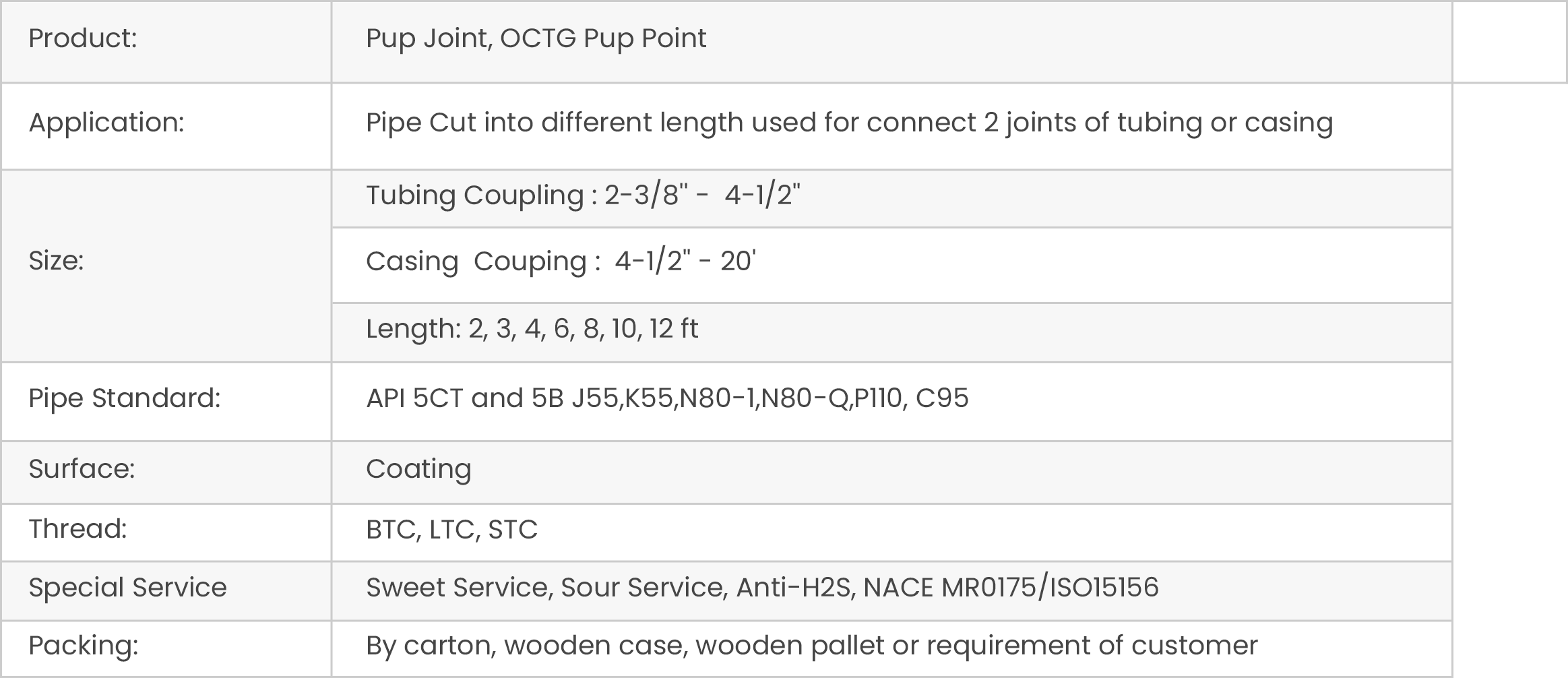

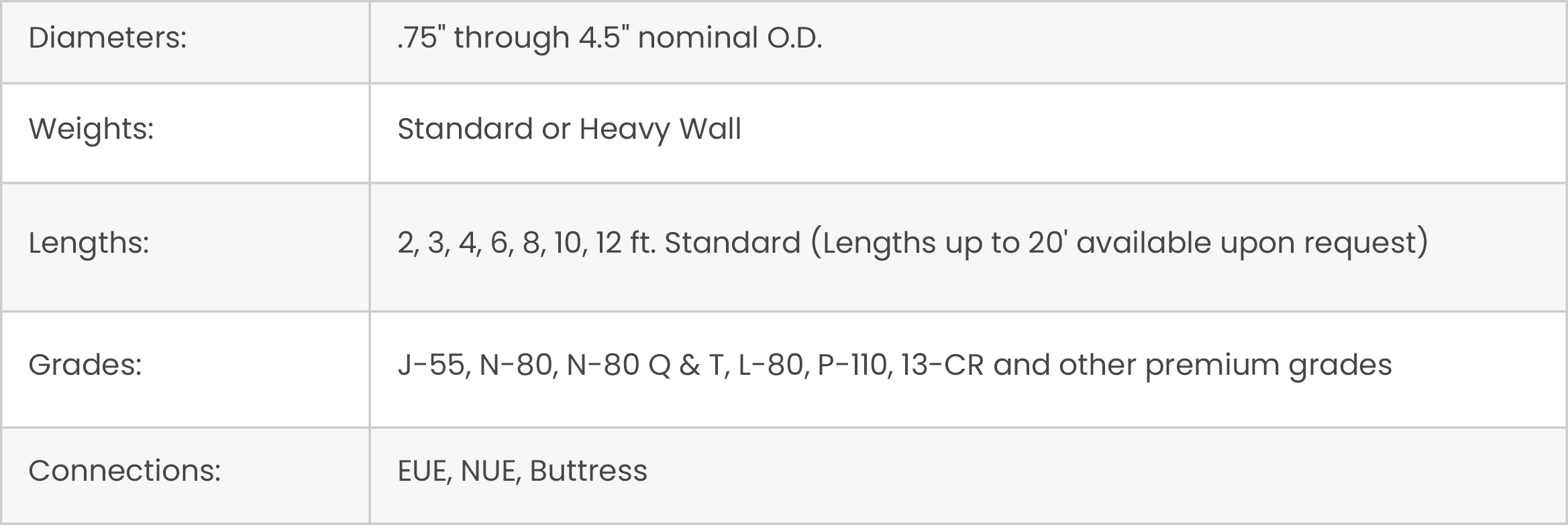

- Parameters
- Note: We are capable to provide ALL world famous premium thread connections as per end user specific requirements.
